SPECIFICATIONS
APP: Smart life/Tuya Smart
Batteries Required?: No
Current: 10A/16A
Max.load: 10-100w
No Neutral Wire: Yes
Product type: 3CH Zigbee Light Switch Module
Protocol: Zigbee 3.0
Technical support: ODM/OEM
Voltage: AC200-240V 50/60Hz
Wims(W*D*H): 39.2*39.2*18
app control: App Control
application: Hotel,Garage,Commercial,Home
camera: No Camera
feature: App Control,Waterproof,Time Scheduling,App Remote Control,Voice Control
operation system: Android and iOS
place of origin: Shenzhen
power source: Electric
private mold: Yes
product type: Smart Switch
use: Universal

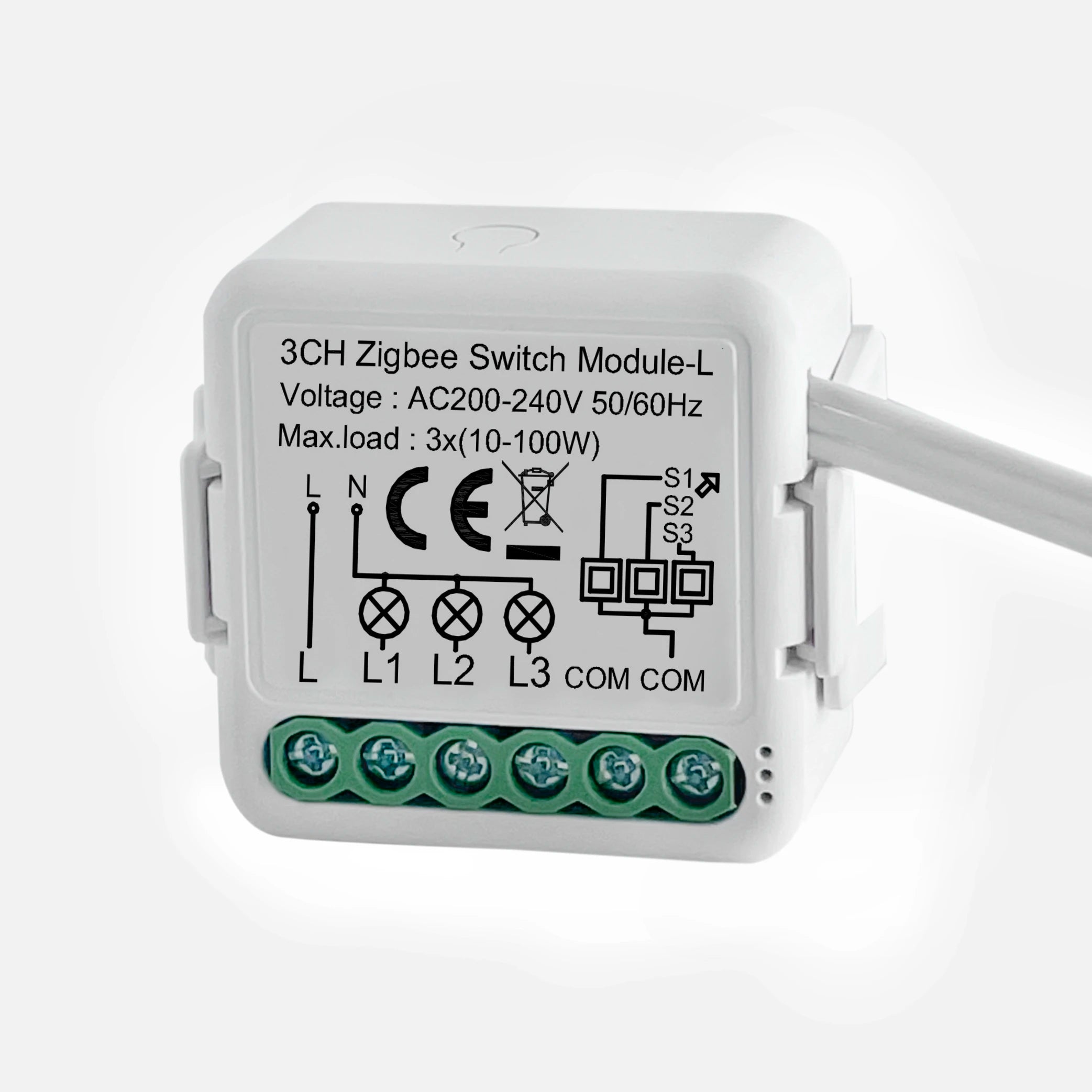

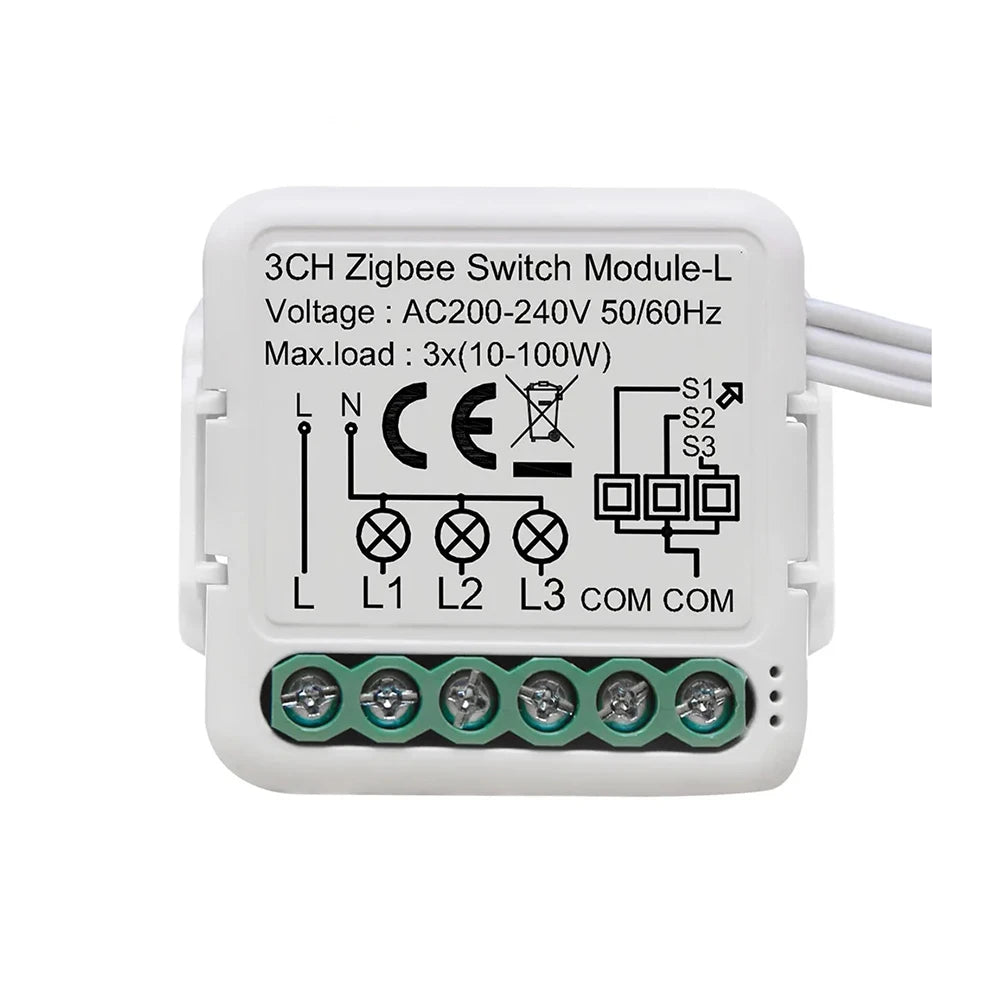

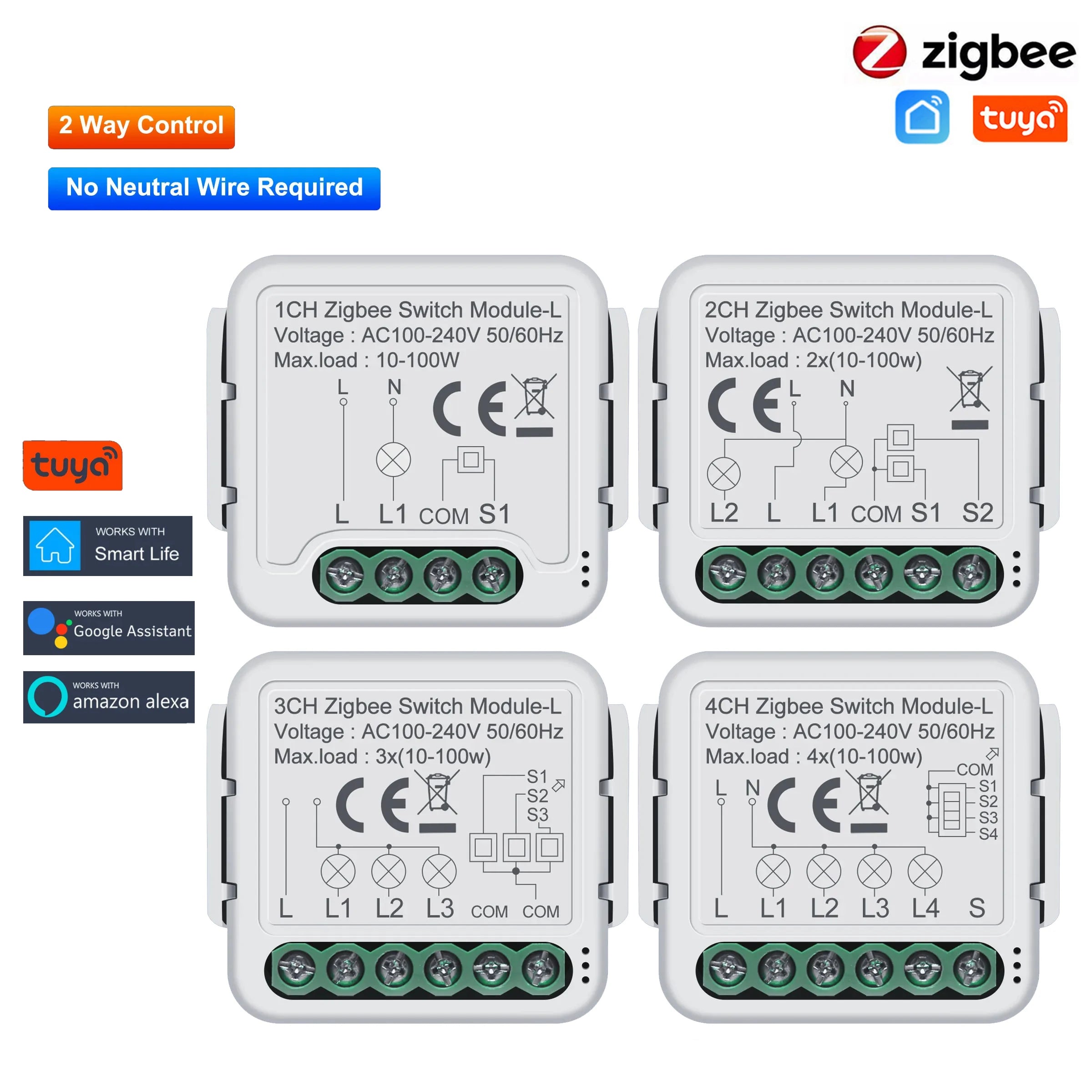

3 Channel Tuya Smart Controller no Neutral Zigbee Smart Wall Switch LED Light Controller, DIY Relay Module
●【Mini and Smart Design】The Smart Wall Switch is compatible with Alexa ZigBee Hub and can repeat ZigBee signals for expanded smart home control capabilities. Suitable for wall switch boxes, easily concealed within the traditional switch wall box. It enables convenient hands-free voice control, timer and wireless remote control.
●【Require ZigBee Hub】Smart module specifically for ZigBee protocol, allowing complete linkage of your smart home network; traditional switch and smart module can work independently without interference.
●【Voice Control】Smart Life and Tuya App control on smartphones. Supports Amazon Alexa and Google Home for hands-free voice control, and wireless remote control.
●【Convenient Settings】Easily connect and control devices as long as there is a ZigBee signal. Take full control of connected appliances with timers, schedules, and the countdown (1/5/30 mins, 1 hour, etc.) with Smart Life and Tuya App
|
Product tyep
|
3Ch Zigbee Switch Module-L
|
|
Voltage
|
AC100-240V 50/60Hz
|
|
Max. load
|
10-100W
|
|
Wiring
|
Without neutral line
|
|
Operation temp.
|
-10℃+40℃
|
|
Protocol
|
Zigbee 3.0
|
|
Current
|
10A/16A
|
|
Dims(WxDxH)
|
39.2x39.2x18mm
|
|
IP rating
|
IP20
|
|
App
|
Smart life/Tuya smart
|

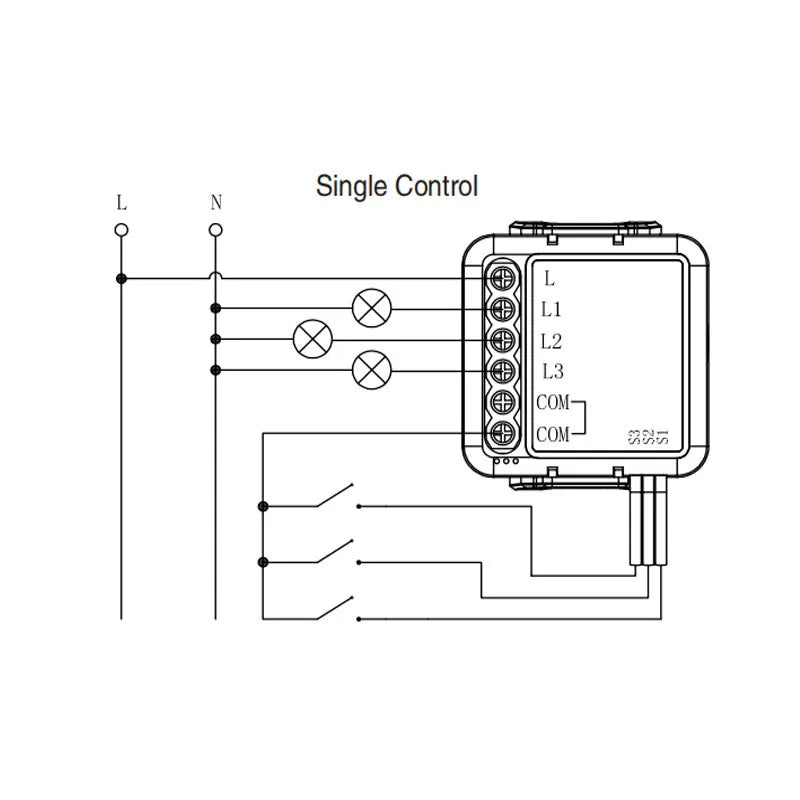

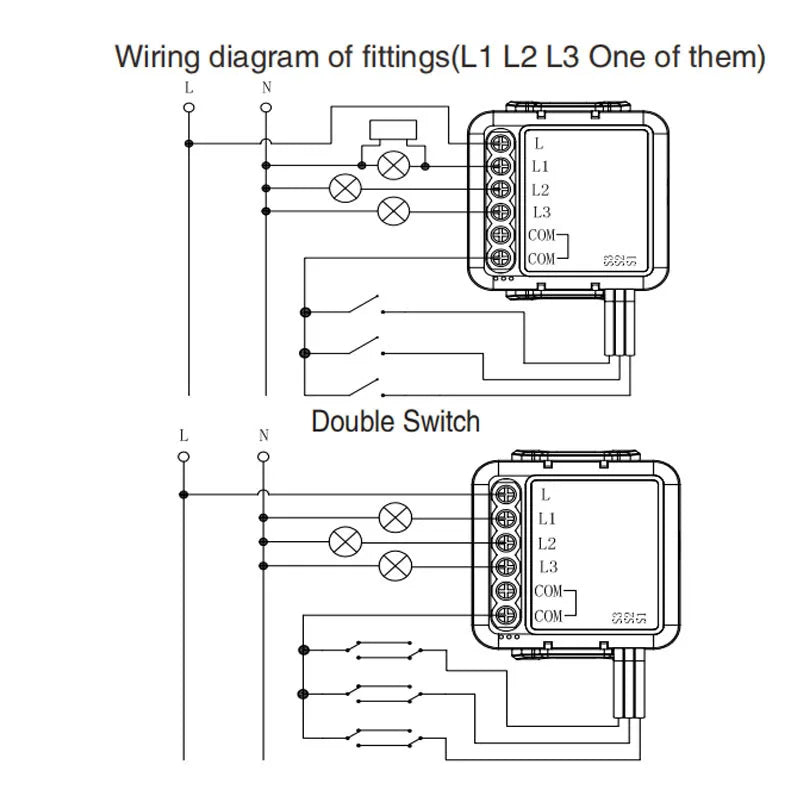

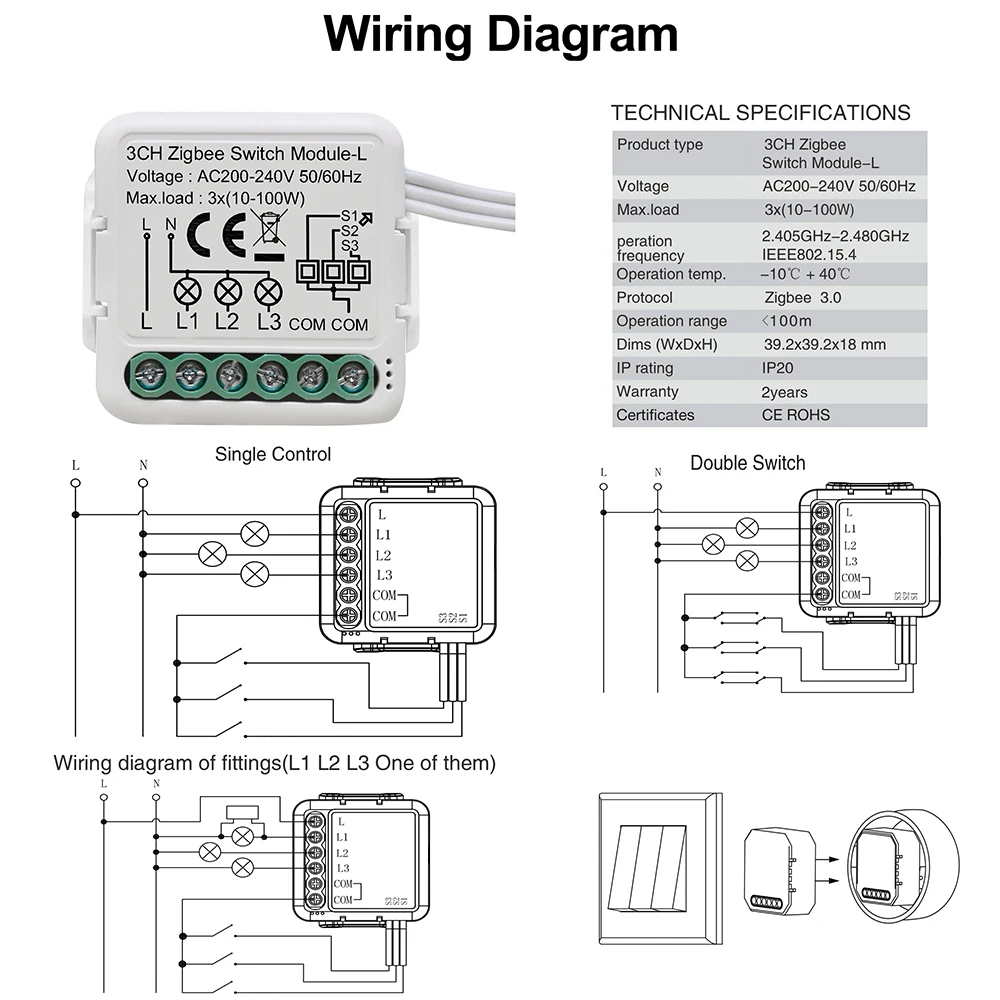

Installation Instructions
Wilmore Co., Ltd Focus on Smart Wi-Fi /Zigbee/Bluetooth/Matter Smart Controlled Products
2 advantages 1. OEM/ODM+technical support 2. After service assurance
